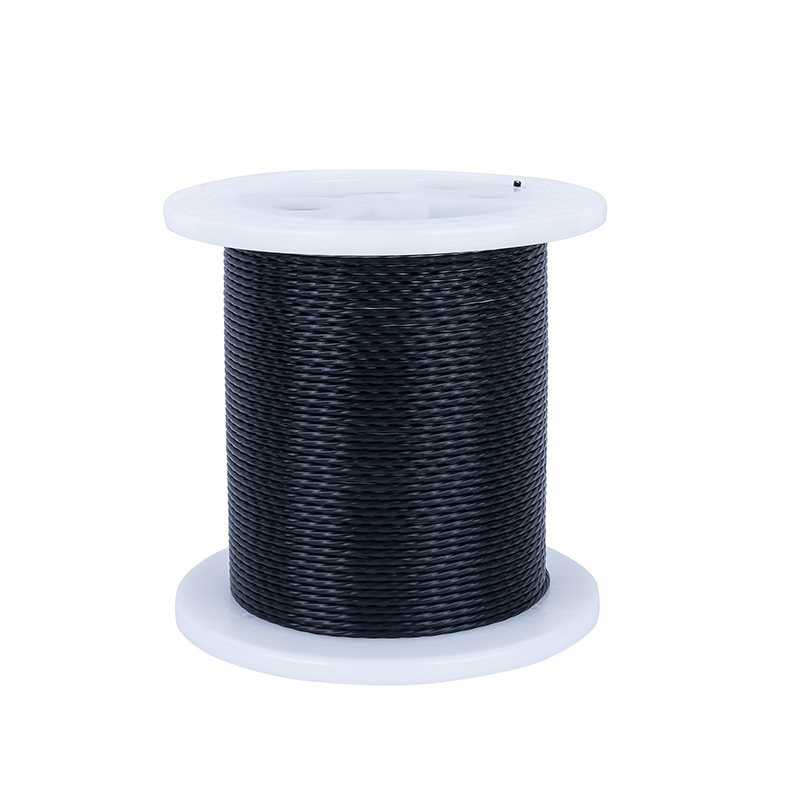

PTFE Insulated Wire

Short Description:

Insulation: PTFE Teflon

Conductor: sliver plated copper, nickel plated copper, pure nickel(optional)

Wire Sectional Area: 32AWG ~ 10AWG

Rated voltage: 300V, 600V,1000V

Working temperature: -80 °C~ +250 °C

Color: customized

Send email to us

Product Detail

Product Tags

Specification

105℃&200℃ AWG
UL code		1213		1180		1815
Voltage		No requedt		300V		300V
Temp		105℃		200℃		250℃
AWG	Ω	OD (inches)	Weight (KG/KM)	OD (inches)	Weight (KG/KM)	OD (inches)	Weight (KG/KM)
10	3.55	0.1350	54.67	0.1445	57.74	0.1445	57.74
12	5.64	0.1130	37.23	0.1224	39.82	0.1224	39.82
14	8.96	0.0894	22.05	0.0988	24.12	0.0988	24.12
16	14.60	0.0756	15.04	0.0850	16.80	0.0850	16.80
17	18.30	0.0677	11.64	0.0772	13.23	0.0772	13.23
18	23.20	0.0618	9.38	0.0713	10.84	0.0713	10.84
20	36.70	0.0539	6.41	0.0614	7.41	0.0614	7.41
22	59.40	0.0480	5.07	0.0575	6.23	0.0575	6.23
24	94.20	0.0402	3.27	0.0496	4.25	0.0496	4.25
26	150.00	0.0354	2.35	0.0449	3.23	0.0449	3.23
28	239.00	0.0307	1.60	0.0402	2.38	0.0402	2.38
30	381.00	0.0283	1.28	0.0378	2.01	0.0378	2.01
32	664.80	0.0260	1.01	0.0354	1.68	0.0354	1.68
34	948.38	0.0236	0.77
36	1500.98	0.0224	0.67
UL code		10393		1199		1584
Voltage		250V		200V		1000V
Temp		250℃		200℃		200℃
AWG	Ω	OD (inches)	Weight (KG/KM)	OD (inches)	Weight (KG/KM)	OD (inches)	Weight (KG/KM)
10	3.55	0.1445	57.74	0.1587	62.75	0.1626	64.22
12	5.64	0.1224	39.82	0.1366	44.10	0.1406	45.37
14	8.96	0.0988	24.12	0.1130	27.62	0.1169	28.67
16	14.60	0.0850	16.80	0.0992	19.85	0.1031	20.77
17	18.30	0.0772	13.23	0.0913	16.01	0.0953	16.87
18	23.20	0.0713	10.84	0.0854	13.43	0.0894	14.23
20	36.70	0.0614	7.41	0.0756	9.67	0.0795	10.38
22	59.40	0.0575	6.23	0.0717	8.36	0.0756	9.04
24	94.20	0.0496	4.25	0.0638	6.13	0.0677	6.73
26	150.00	0.0449	3.23	0.0591	4.95	0.0630	5.51
28	239.00	0.0402	2.38	0.0543	3.94	0.0583	4.45
30	381.00	0.0378	2.01	0.0520	3.49	0.0559	3.99
32	664.80	0.0354	1.68
