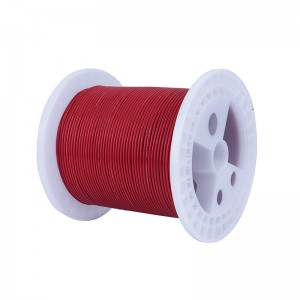

UL 1911 PFA High Voltage Wire
Over 80 sorts of UL Certificates wires for selection,meeting your requirements.
For PFA wires we have UL certificated wires as following:
PFA Insulation wire 250 ℃
UL1707 UL1708
UL1709 UL1726 UL1710 UL1716 UL1727
UL1857 UL1860 UL1858 UL1859 UL1882
UL1911 UL1929 UL1930 UL1933 UL10110
UL10129 UL10362 UL10485
UL10486 UL10503 UL10142
PTFE Insulation wire 260 ℃
UL1164 UL1180 UL1198 UL1199
UL1212 UL1213 UL1570 UL1584
UL1815 UL10393 UL1659
FEP Insulation wire 200 ℃
UL1330 UL1332 UL1333
UL1371 UL1538 UL1577 UL1591 UL1592
UL1723 UL1887 UL1901
For now Shanghai Xutong have total 36 sets PFA extrude production lines with annual capacity of 150,000 KMS, which dramatically pull down the cost and enable us to provide customers with extremely competitive price, especially for the partners who are interesting in being our Agent in local places of the world.
Annual capacity of other High-temperature wires as below:
1.PFA/FEP/ETFE/PEEK wires:400,000 KMS
2.PTFE tape lapping wires:18,000 KMS
3.Extremely -soft Silicone rubber wire:72,000 KMS
4.Silicone rubber wires with high voltage:20,000 KMS
5.High temperature wires with Shield:28,000 KMS
6.MGT fiberglass lead wires:10,000 KMS
7.EV wires:200,000 KMS
8.Silicone rubber wires with braided fiberglass sheath:18,000 KMS
9.Multi-core cables:40,000 KMS
PFA wires in stock
For the PFA wires or UL certificated PFA wires with regular size,we have prepared sample wires in stock all year around,welcome asking for the sample wires.
|
AWG |
Conductor construction strands/O.D.（mm） |
Average outside diameter （mm） |
Conductor DC resistance at 20 ℃ （Ω/km） |
||||||||
|
5KV |
10KV |
15KV |
20KV |
25KV |
30KV |
35KV |
40KV |
50KV |
|||
|
24 |
7/0.20 |
1.60 |
1.8 |
1.90 |
2.00 |
2.10 |
2.30 |
2.40 |
2.60 |
2.90 |
89.2 |
|
22 |
19/0.15 |
1.75 |
1.95 |
2.05 |
2.15 |
2.25 |
2.45 |
2.50 |
2.75 |
3.05 |
56.4 |
|
20 |
19/0.18 |
1.90 |
2.10 |
2.20 |
2.30 |
2.40 |
2.60 |
2.70 |
2.90 |
3.20 |
35.3 |
|
18 |
19/0.23 |
2.15 |
2.35 |
2.45 |
2.55 |
2.65 |
2.85 |
2.95 |
3.15 |
3.45 |
22.2 |
|
17 |
19/0.26 |
2.30 |
2.50 |
2.60 |
2.70 |
2.80 |
3.00 |
3.10 |
3.30 |
3.60 |
17.6 |
|
16 |
19/0.30 |
2.50 |
2.60 |
2.80 |
2.90 |
3.00 |
3.20 |
3.30 |
3.50 |
3.80 |
14.0 |
|
14 |
19/0.37 |
2.85 |
3.05 |
3.15 |
3.25 |
3.35 |
3.55 |
3.65 |
3.85 |
4.15 |
8.78 |
|
12 |
19/0.48 |
3.40 |
3.60 |
3.70 |
3.80 |
3.90 |
4.10 |
4.20 |
4.40 |
4.70 |
5.53 |
|
10 |
37/0.43 |
4.05 |
4.25 |
4.30 |
4.40 |
4.50 |
- |
- |
- |
- |
3.47 |
